Components for SG15S024

CG 332583 b2b

Bearing Cap

Further information 140273
OD 37,50 мм
ID 35,00 мм
Height 17,50 мм

CG PX602 b2b

Brushes

Voltage 14 V, 12 V
OEM VALEO
Set 2
Lead length 48,00 мм
Height 6,40 мм
Thickness 4,60 мм
Total length 15,40 мм

CG 332320 b2b

Freewheel Pulley

Grooves 6
Height 36,00 мм, 36,20 мм
Depth 11,00 мм, 11,10 мм
OD 54,00 мм, 54,60 мм
Measur. 1st groove 7,80 мм, 7,00 мм
OEM ZEN
Core thickness 17,00 мм
Thread size M16-1.50

CG 230523 b2b

Freewheel Pulley

OEM LUK
Measur. 1st groove 7,00 мм, 7,20 мм
Core thickness 17,00 мм
Thread size M16-1.50
Grooves 6
Height 35,00 мм, 35,30 мм
Depth 11,00 мм
OD 54,00 мм, 54,30 мм

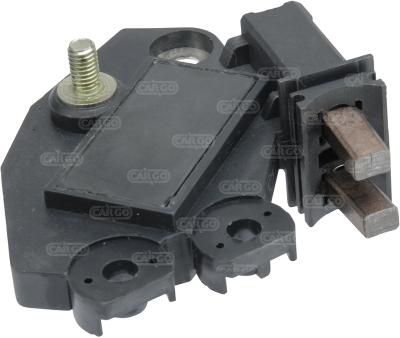

CG 235657 b2b

Regulator

Voltage setting 14,00 V
Voltage 12 V
Dist. mount. holes mm 66,50 мм, 66,00 мм
OEM VALEO
Current Type Переменный
ARC Signal N/A
COM type N/A
Regulator plug L BOLT
Total length 155,50 мм, 155,00 мм
OD 110,30 мм, 110,00 мм
OEM VALEO
Splines N/A
Thread size M16-1.50
Core thickness 17,00 мм
Current 150 Am
Voltage 14 V

CG 135179 b2b

Slip Ring

ID 8,00 мм, 8,85 мм, 6,80 мм, 6,00 мм
Total length 27,80 мм, 27,00 мм
OD 14,90 мм, 14,00 мм
OEM VALEO

CG 235089 b2b

Stator

OEM VALEO
No./terminals 3
Height 30,00 мм
ID 111,00 мм
OD 143,00 мм
OD 2 136,00 мм
Current 150 Am
Voltage 14 V
