Components for 63321204

CG 140914 b2b

Brushes

Set 2, 1
Voltage 14 V, 12 V
OEM MARELLI
Lead length 96,00 мм
Height 7,00 мм
Thickness 4,00 мм
Total length 19,50 мм

CG 230290 b2b

Pulley

OEM MARELLI
Core thickness 17,00 мм
Grooves 6
Height 29,00 мм
Depth 22,00 мм
OD 62,00 мм

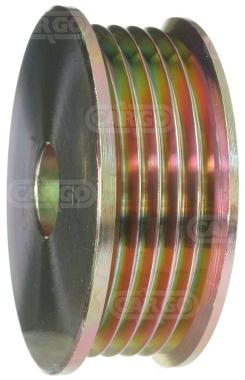

CG 139219 b2b

Pulley

Height 25,00 мм
Depth 18,00 мм
OD 62,00 мм
OEM MARELLI
Core thickness 17,00 мм
Grooves 5

CG 136423 b2b

Rectifier

Current 50 Am
Voltage 12 V
ID 37,15 мм, 37,00 мм
OD 109,50 мм, 107,00 мм
OEM MARELLI
Diode type AVALANCHE
Diode voltage 32 V
Stator Y
Dist. mount. holes mm 85,00 мм
No. of diodes 6

CG 136432 b2b

Regulator

Voltage setting 14,00 V
Voltage 12 V
OEM MARELLI
Current Type Переменный
ARC Signal N/A
COM type N/A
Regulator plug L BOLT
Dist. mount. holes mm 60,00 мм

CG 331850 b2b

Regulator

Voltage setting 14,40 V, 14,00 V
OEM MARELLI
Current Type Переменный
ARC Signal N/A
COM type N/A
Regulator plug L BOLT
Dist. mount. holes mm 84,00 мм
Voltage 12 V
Thread size M17-1.50
Core thickness 17,00 мм
Total length 153,00 мм
OD 91,00 мм, 91,30 мм
Current 85 Am, 65 Am
Voltage 14 V
OEM MARELLI
Splines N/A

CG 138441 b2b

Slip Ring

Total length 46,50 мм, 46,00 мм
ID 6,80 мм, 6,00 мм
OEM LUCAS
OD 16,00 мм

CG 139956 b2b

Stator

OD 118,00 мм
Current 65 Am
Voltage 14 V
Height 29,50 мм, 29,00 мм
OD 2 N/A
OEM MARELLI
No./terminals 3
ID 92,00 мм
